50000L reactor in chemical industry

Name: 50000L reactor in chemical industry
Brand: China high pressure reactor manufacturer
SKU: 00428
Availability: InStock
Rating: 5 (1 reviews)

No.00428

The 50000L reactor is an essential equipment in fine chemical industry. It is made to meet the high presure high temperature requirement, with outstanding corrosion resistance.

No.	Parameters	Kettle	Jacket
1	Full volume（L）	/
2	Work volume（L）	50000
3	Design pressure（MPa）	2.5	0.6
4	Work pressure（MPa）	1.7	0.5
5	Design temperature（℃）	250	250
6	Work temperature（℃）	200	200
7	Material	S31603+Q345R,16MnⅡ	Q345R

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

50000L reactor in chemical industry

Frequently Asked Questions

1.Are you trading company or manufacturer?

2.Pre-Sale Stage

3.Production Stage

4.After Sale Stage

5.Training & Installation

CONTACT US

Visit us

E-mail us

Call us

Download

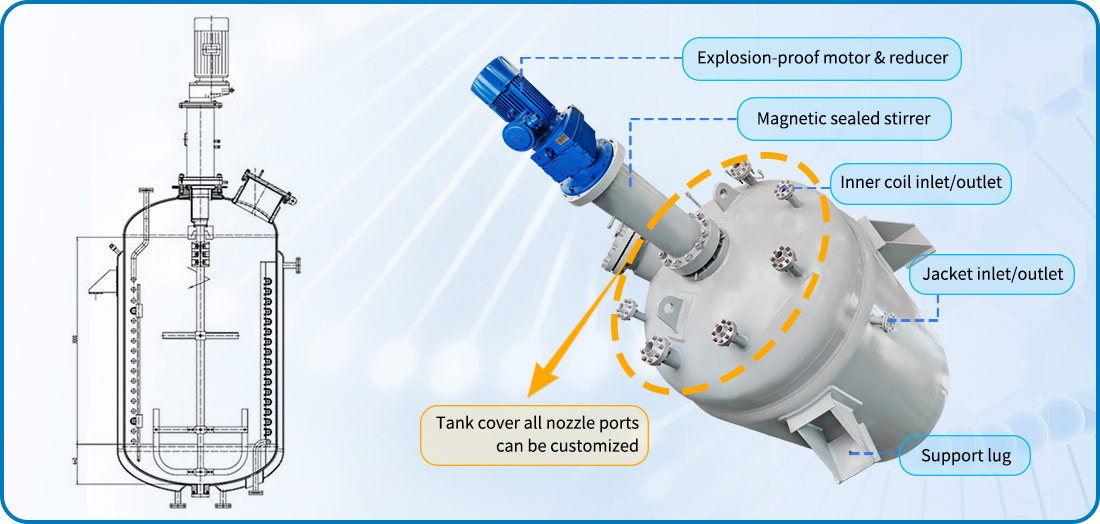

	Reactor body: The material of the reactor is stainless steel and carbon steel. The inner surface of its kettle is S316L, which is applied for corrosion medium. The other parts' material is the carbon steel, so it would support the reactor as well as the medium containing inside it. The plate surface is finished and spary painted in industrial gray. Because of the robustness of the body, the reactor could be fixed directly on flat truck with ropes. The kettle is surrounded with the jacket, which is used as the heating component of the equipment. There are inlet/outlet of the thermal medium for the jacket. And the drain ports are also adopted for the jacket, so that the contaminated medium could be removed from the jacket.
Reactor Head: It is welded to the kettle cylinder. This kind of close type of body could help the equipment to withstand high pressure at an ecnomic cost. The head's is also made from stainless steel clad carbon steel plate. The ports opened on the head are customized. They are sealed with RF style flanges for high sealing, could prevent the chemical from leakage. The manhole is sealed with flange too. The specification of the flange is customized too.
	Magnetic shaft sealing coupler: The product is toxic and flammable, so the magnetic coupler is applied for this chemical industry. Its length is decided by the torque required by the stirrer. Its bottom is using flange for connection.
