| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 0.1 | ||
| 3 | Design pressure（MPa） | 6 | 1.8 | |
| 4 | Work pressure（MPa） | 5 | 1.5 | |
| 5 | Design temperature（℃） | 250 | 250 | |
| 6 | Work temperature（℃） | 200 | 200 | |
| 7 | Material | S30408 | S30408 | |
 |
Application:

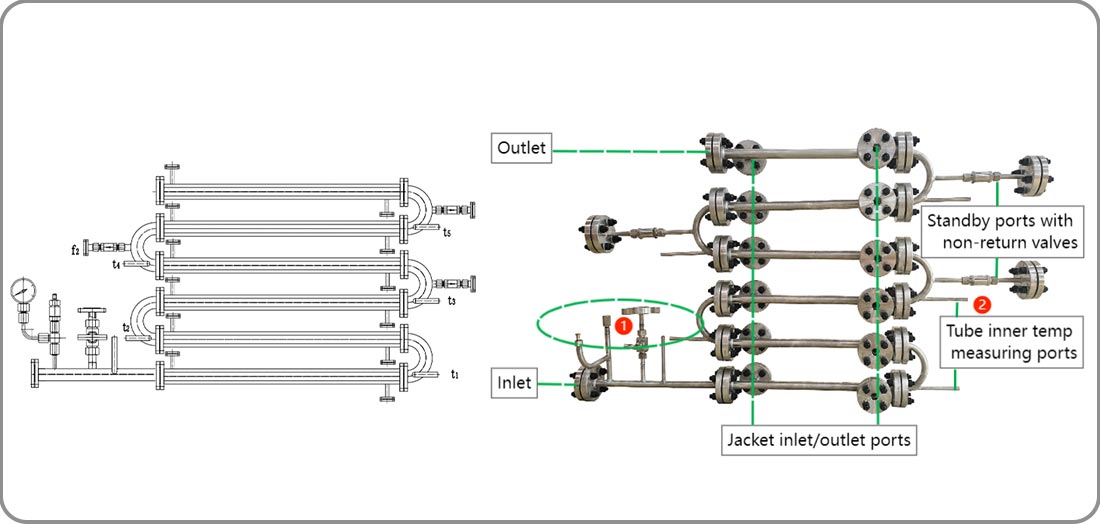

The total volume of the reactor is only 0.1L, so it is used for the lab purpose. Advantage: The tube diameter is 12mm, thickness is 2mm. Material is stainless steel 304. So, it would bear the high pressure of 6.0MPa under 250°C。 Main structure:

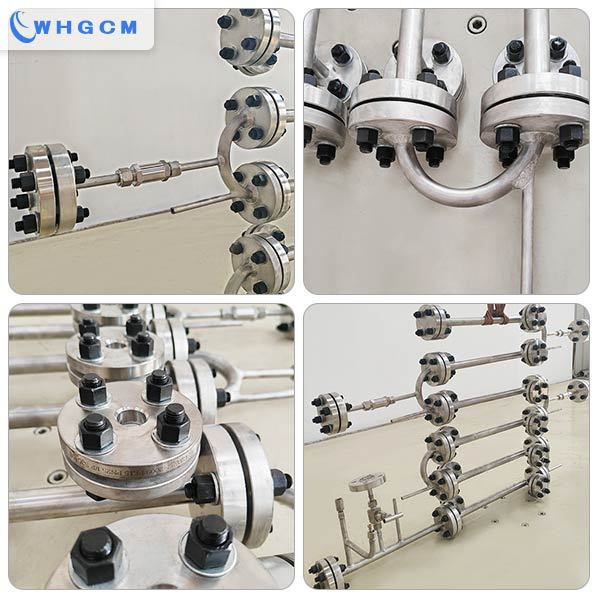

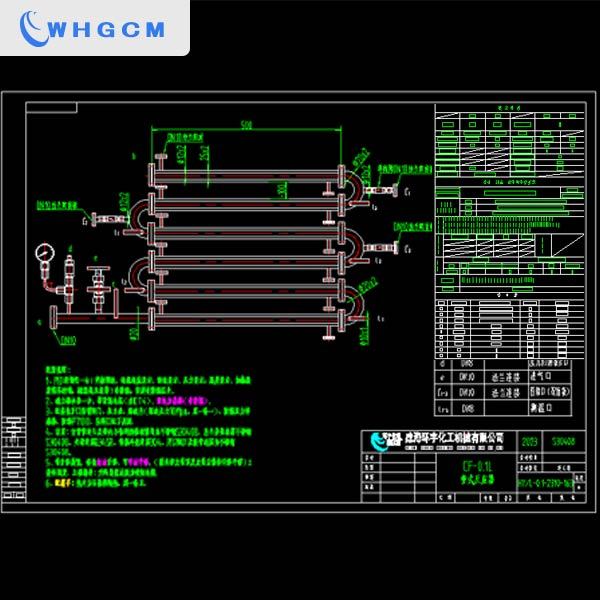

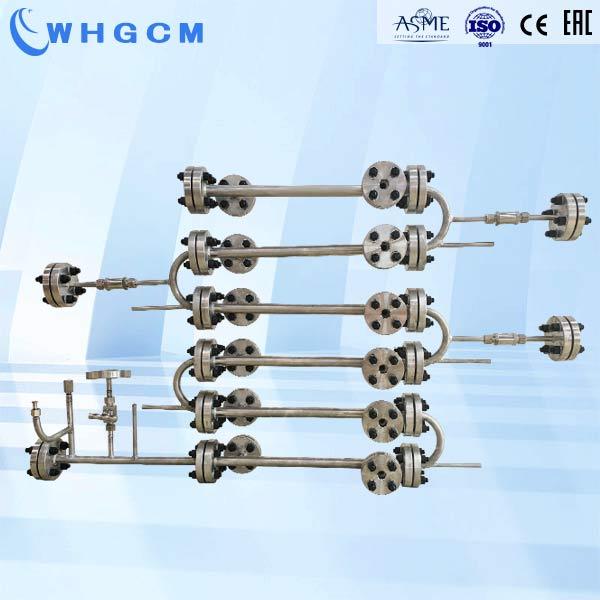

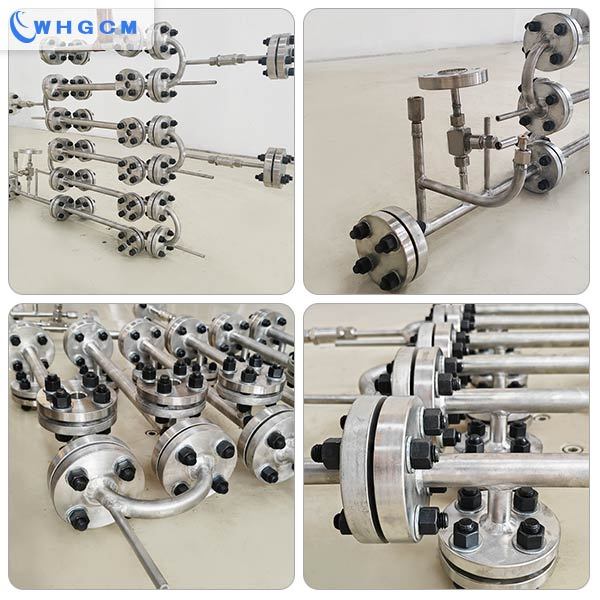

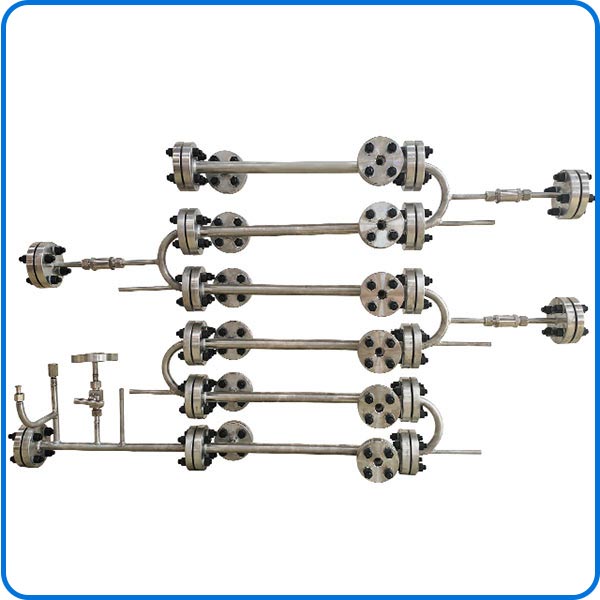

The reactor's body is made of 5pcs of pipes with 500mm length.
Each of the pipes has two port opened on each end, with the side of DN10. And they're mounted with the flange. The purpose of them is to discharge the product at different part for the composition analysis. The flanges have high pressure and high sealing efficiency. |

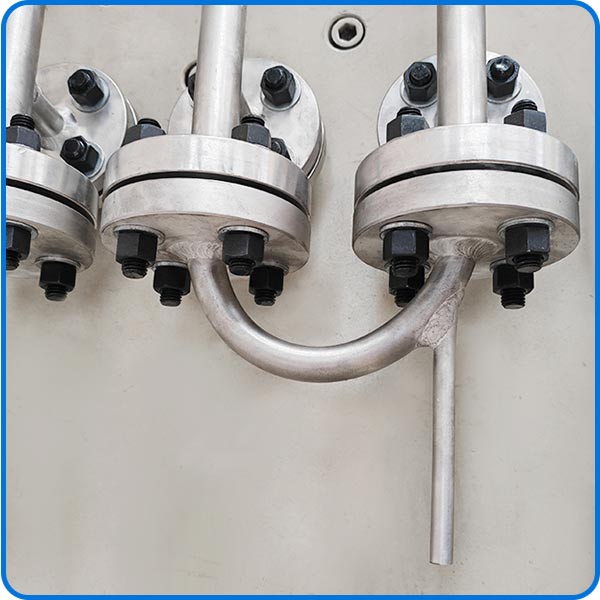

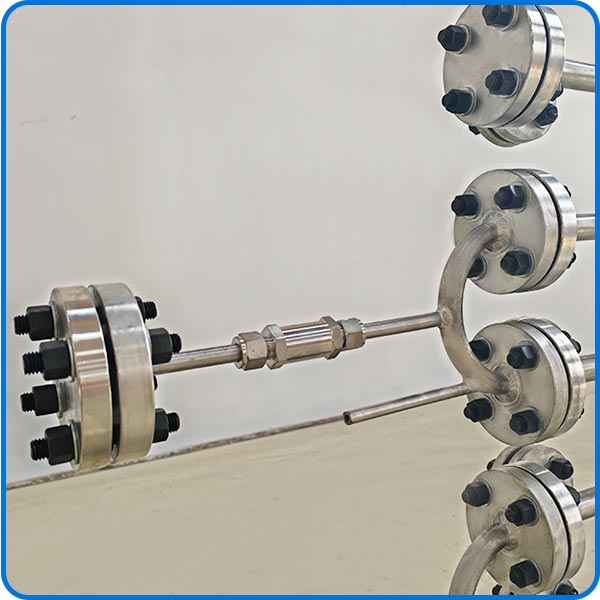

| Inter-charging pipe： There are three ports opened on the high point of U turn. They are equiped with the One-way valve, that could ensure the new material charing to the tubular reaction space. They are also using for testing a proper position for inter charging of the reaction. Please note: This type of inter-charging part could be assembled at any position for the tubular flow reactor. |
 |
 |
Thermowell: The ports opened for the gauges are property arranged. There are 5pcs of DN8 tubes welded on the each pipe. These tiny tubes are used as thermowell of the temperaturemeter. So, the tempreature of each pipe could be monitored. The length of thermowell is short, and it is only applied for the tubular flow reactor. |

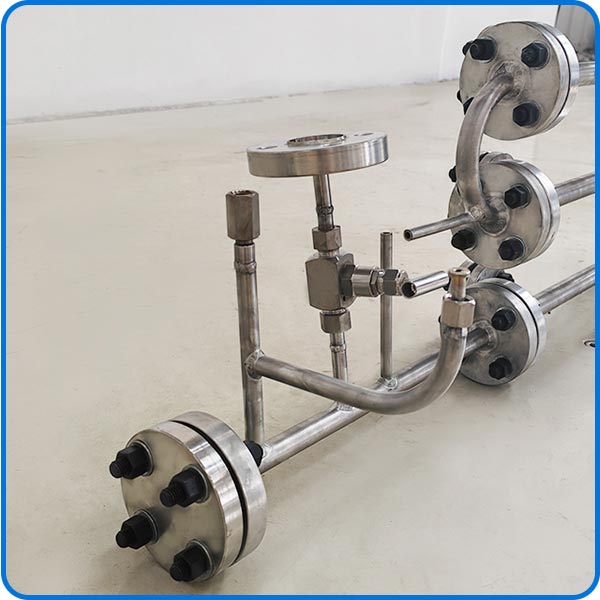

| Pressure monitoring part: The pressure of reactor is monitered by the pressure gauge. The gauge is assembled on the bratch nozzles opened close to the charging port. Next to the pressure guage is the burst disc, which will release the pressure when the reactor's pressure exceed the set up value. Beside the pressure measuring nozzle, there is a gas charing port, it is sealed with the needle valve. And a thermowell is mounted beside it to monitor the raw material's temperature. |
 |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
